Standard Residential Elevator Door Baffle (29″ & 33″)

Standard Residential Elevator Door Baffle

(Available in 29″ and 33″ widths)

Fabricated for use in certain existing residential elevator retrofit applications,
this clear acrylic panel is available in two optimized widths (29″ and 33″) for
direct purchase. The panel is intended to reduce door gap exposure while
maintaining a clean, architectural appearance.

Includes anodized aluminum mounting hardware and a drilling template for
installation on solid wood residential elevator doors.

Based on field measurements from common residential installations, this
standard series is offered in two optimized widths — 29″ and 33″ — to reduce
the need for on-site trimming while simplifying ordering.

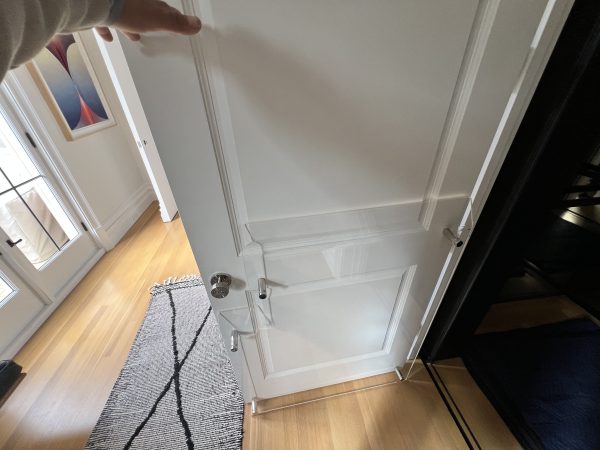

When installed, the panel is positioned with a top height of 45″ above
finished floor, consistent with typical residential elevator code requirements.

Important: Before ordering, we strongly recommend having your elevator
and door configuration reviewed by a licensed elevator contractor, general
contractor, or other qualified professional. Elevator configurations vary, and
the purchaser is responsible for confirming that this baffle is appropriate for
the specific installation, including dimensions, handing, projection, mounting
conditions, and overall suitability. Professional installation is strongly
recommended.

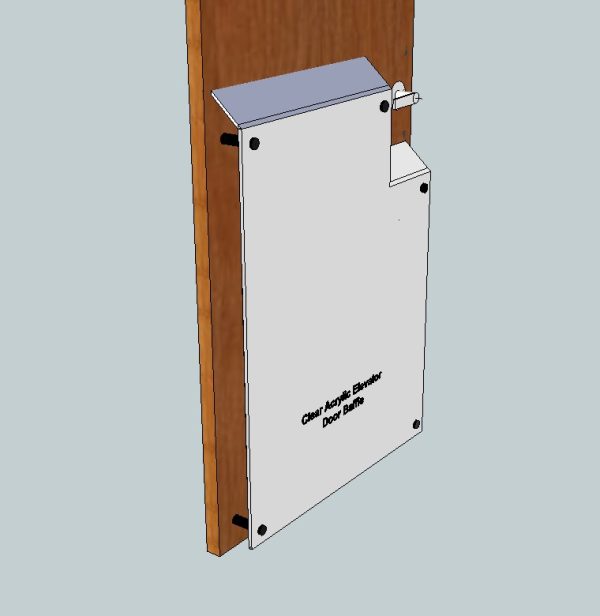

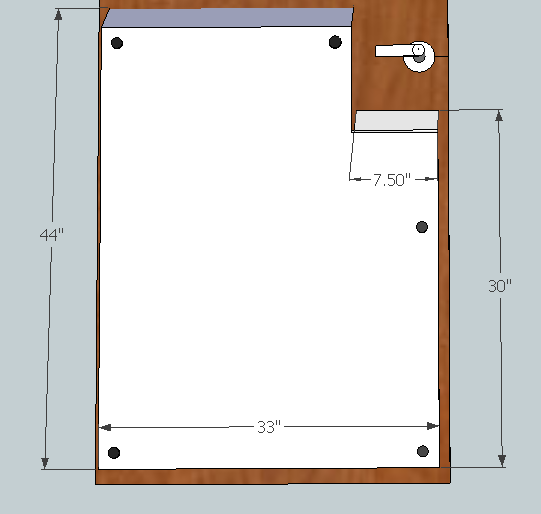

Specifications

• Panel height: 44″
• Installed height: 45″ from finished floor
• Panel thickness: 3/8″ clear cast acrylic
• Available widths: 29″ or 33″
• Projection from wall: 3-3/4″
• Designed for solid wood residential elevator doors

Included Hardware

Each unit includes:

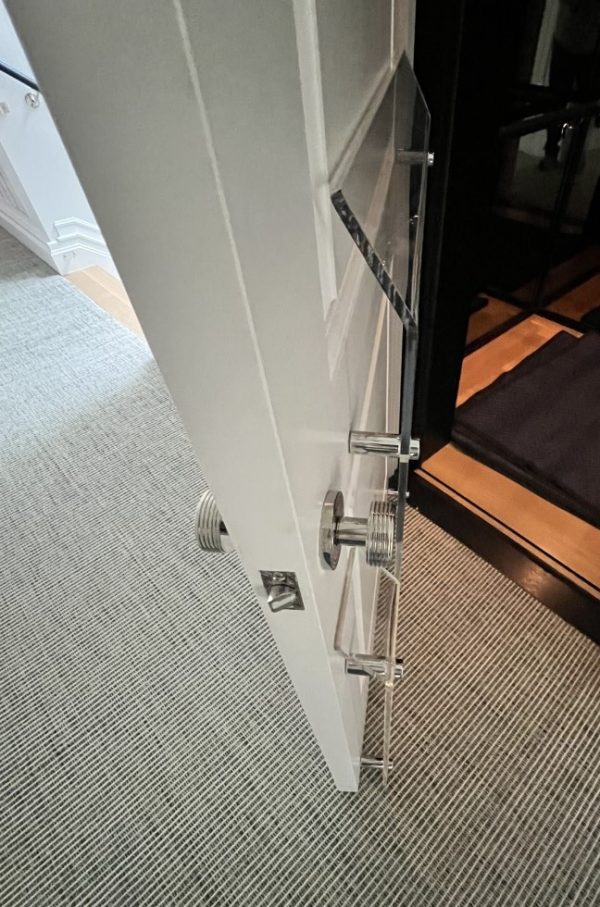

• (5) 1″ diameter × 3″ long clear anodized aluminum standoff barrels
• (5) 1″ diameter × 3/8″ long standoff caps
• Mounting hardware for solid wood doors
• Full-size drilling template

All hardware is selected for durability and clean visual integration with
residential interiors.

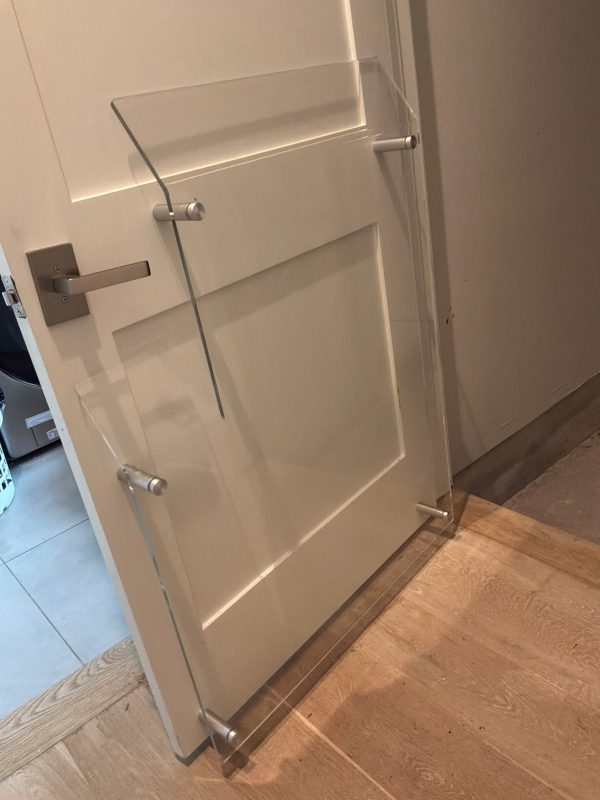

Handing (Left / Right)

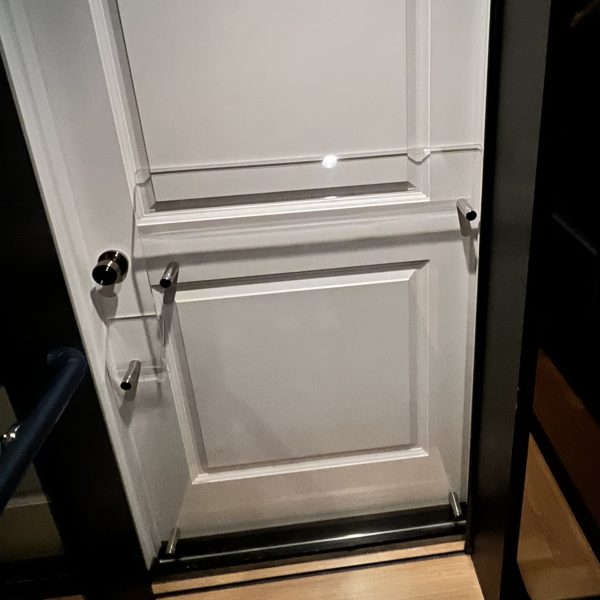

Handing is determined from inside the elevator cab, facing
the door.

Left: Door handle is on the left side
Right: Door handle is on the right side

The panel includes a handle cut-out and must match the handle location.

Important: Selecting the incorrect handing will result in a
panel that cannot be installed.

Installation Notes

Before ordering, we strongly recommend having your elevator and door
configuration reviewed by a licensed elevator contractor, general contractor,
or other qualified professional.

Elevator configurations vary. Cutting Edge Plastics fabricates and supplies
the baffle and mounting hardware but does not evaluate the elevator, determine
whether this product is appropriate for a specific installation, or determine
code compliance.

The purchaser and installer are responsible for confirming the required
dimensions, handing, projection, mounting conditions, installation method,
and suitability for the specific application.

Final installation, code compliance, and acceptance are the responsibility of
the installer and local Authority Having Jurisdiction (AHJ).

Before ordering or installation, visit our

Elevator Baffle Measurement Guide

for information on measuring, handing, projection, and selecting the appropriate
baffle configuration.

Care & Cleaning

This elevator door baffle is fabricated from clear cast acrylic. Proper
cleaning helps maintain its clarity and helps prevent scratching, surface
damage, and crazing.

For recommended cleaning methods, products to avoid, and printable care
instructions, visit our

Acrylic Elevator Baffle Care & Cleaning Guide
.

Elevator Baffle Information

For additional information about residential elevator door baffles, standard
and custom configurations, measuring, installation considerations, and
frequently asked questions, visit

Elevator-Baffles.com
.
