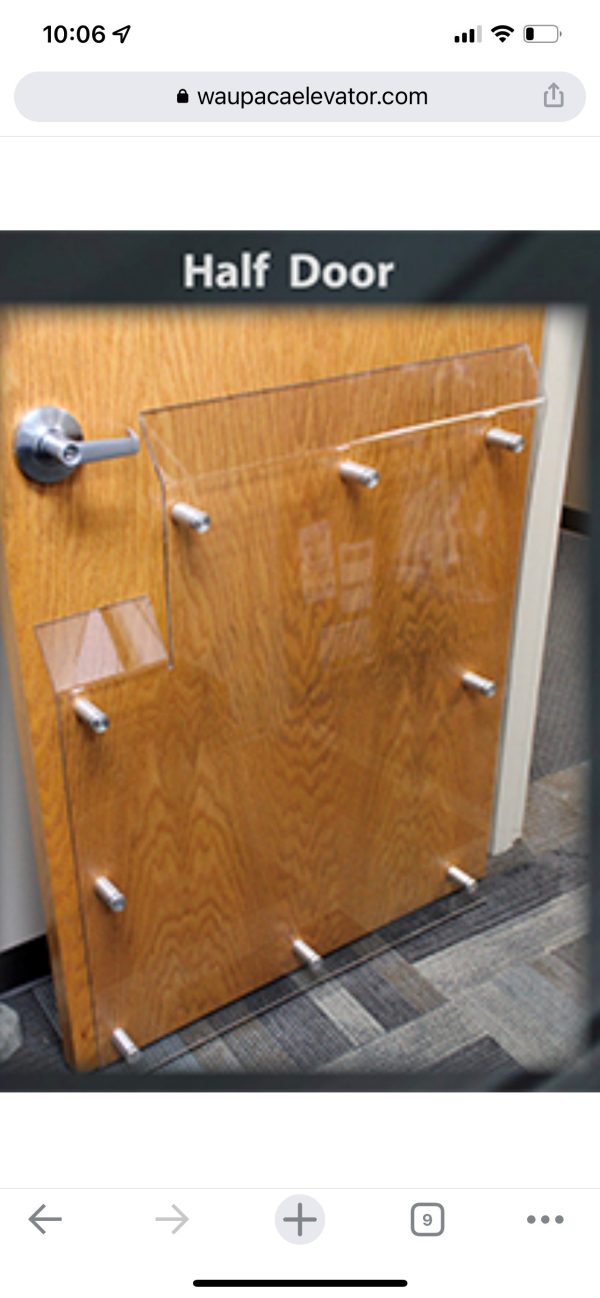

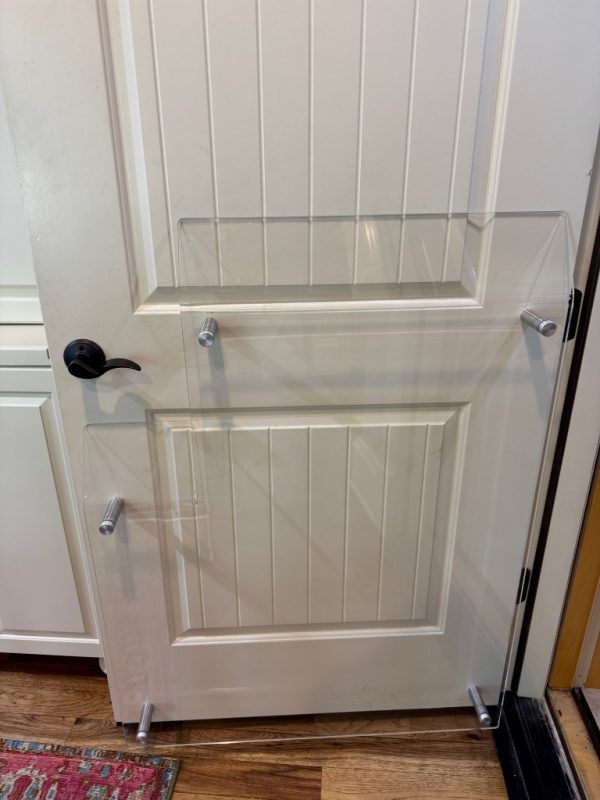

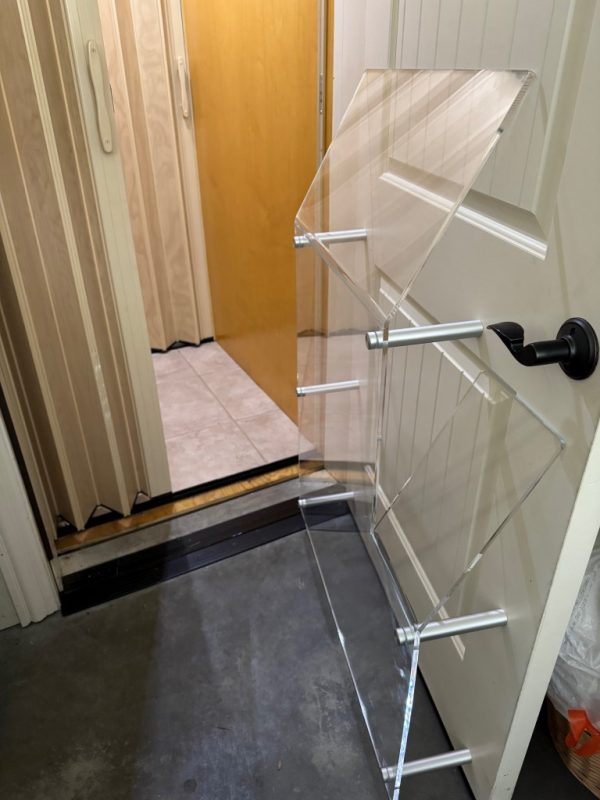

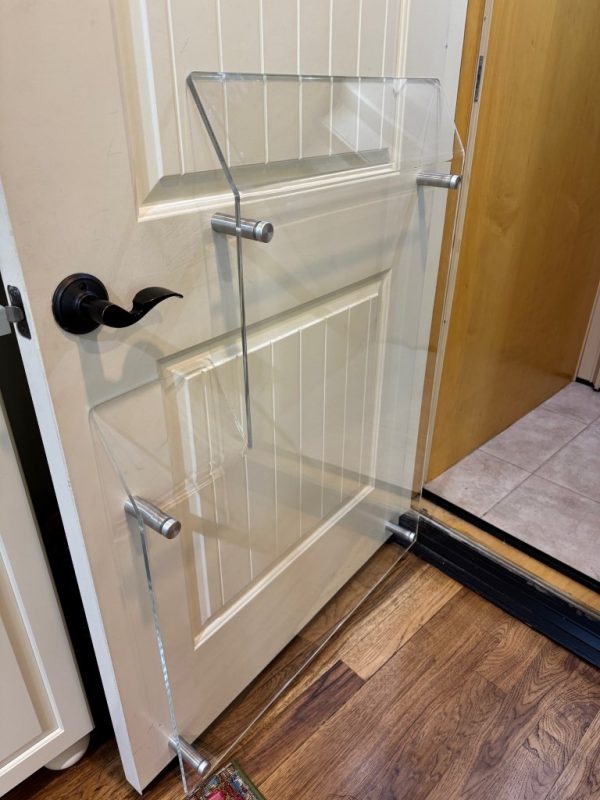

Our Custom Half-Door Elevator Door Baffle with Dual Bends is a made-to-order clear acrylic panel intended for residential elevator retrofit applications where a standard, fixed-width baffle does not fit the door or hardware layout.
This custom configuration is commonly specified for narrower elevator doors, non-standard door handle heights, or other conditions that require the bend locations and overall panel size to be adjusted to match the specific door.
This listing is for the acrylic panel only. Mounting hardware and standoffs are not included.
Design Features
- Material: 3/8 inch clear cast acrylic
- Configuration: Custom half-door panel with dual bends
- Bend locations positioned to clear door hardware as specified
- Upper bend formed at the top edge
- Secondary bend formed below the door handle location
- Bend angles typically range from 60 to 70 degrees, depending on door configuration
- CNC-cut for accuracy and repeatability
- Edges finished smooth and polished
- Fabricated to installer-provided dimensions
Purpose and Applications
This product is commonly specified for:
- Existing residential elevators
- Private lifts
- Narrower elevator doors (typically up to approximately 36 inches wide)
- Doors with non-standard handle heights or hardware locations
The dual-bend design allows the baffle to remain effective while accommodating door hardware without interfering with door operation.
Important Code Compliance Notice
Elevator code requirements, interpretations, and enforcement vary by jurisdiction and inspector. Acceptance of any baffle configuration is determined by the elevator installer and local Authority Having Jurisdiction (AHJ).
Cutting Edge Plastics / Elevator-Guards.com:
- Does not certify code compliance
- Does not provide approval or inspection services
- Makes no guarantee of acceptance by any Authority Having Jurisdiction (AHJ)
Customers are responsible for verifying acceptance with their elevator installer or inspector prior to ordering.
Why Choose This Custom Design
- Allows flexibility for non-standard door widths
- Accommodates unique door handle and hardware locations
- Provides a clean, minimal appearance
- Custom fabricated for each elevator opening
- Ideal when a standard fixed-width baffle will not fit
Looking for a fast, fixed-width option with standard hardware included?
View our
Standard Half-Door Baffle (34.50 inch wide)
.
What Is Included
- One (1) custom-fabricated clear acrylic half-door elevator baffle
- Protective masking applied to both sides
- Template for hardware placement
Not included:
- Mounting hardware
- Standoffs
- Installation services
Measurement and Fabrication Notes
- All baffles are made to order
- Customer-provided dimensions determine final fit
- Handle height and hardware location must be specified
- Minor dimensional variations may occur due to fabrication tolerances
- Bends are formed using controlled heat-bending processes
Final Sale Policy
This product is custom fabricated and is final sale once production begins.
Please review our Terms and Conditions prior to ordering.
